Ready installion

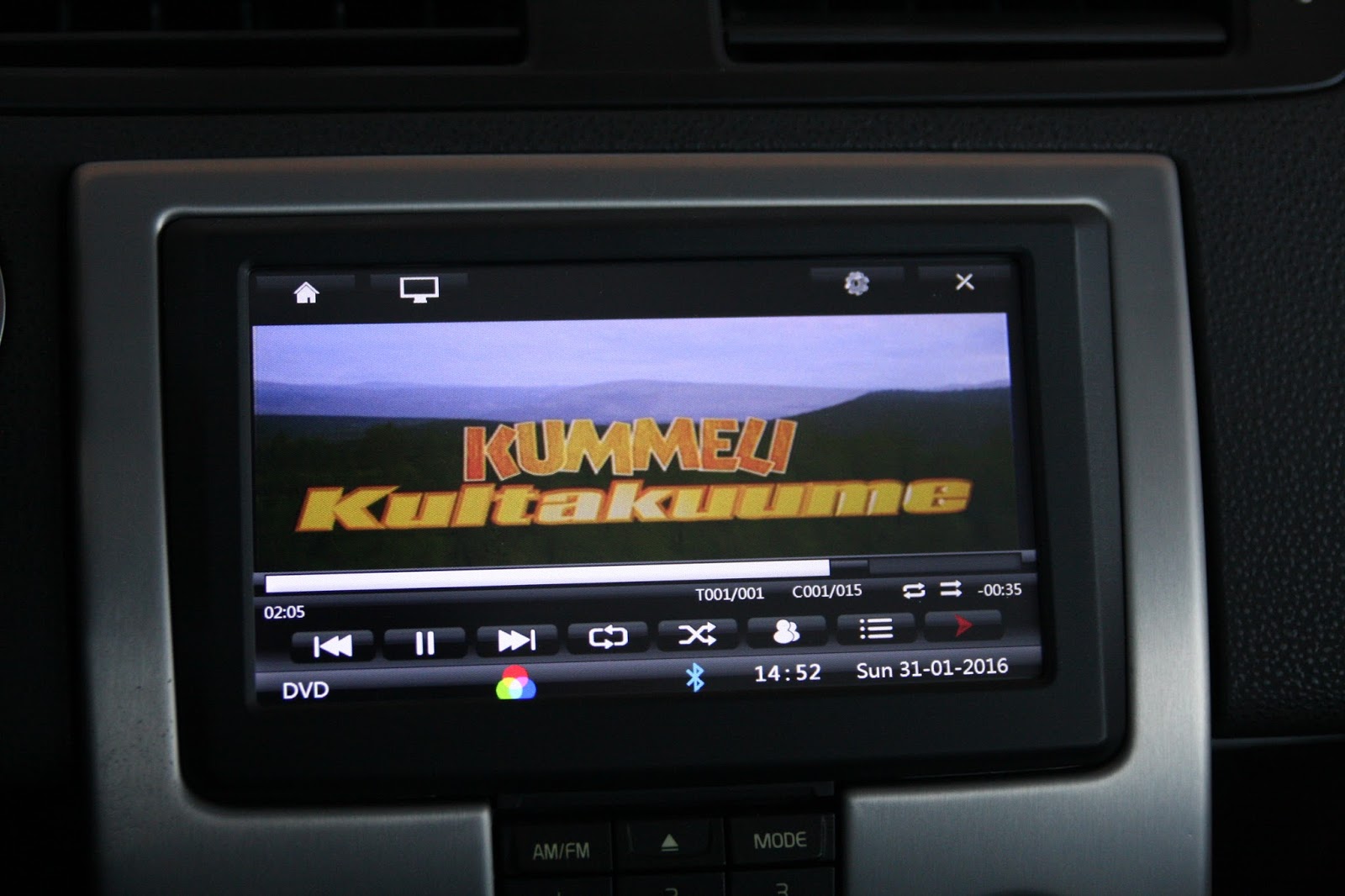

Ready installion, images for menu, navigator, etc.

Central unit in to the glovebox

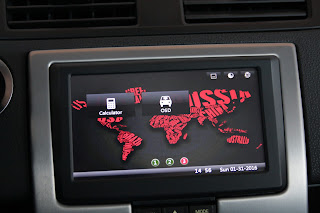

Menu

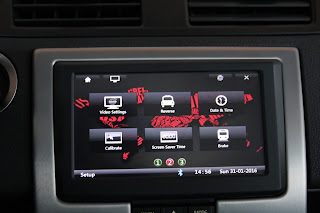

Setup

Handsfree

The original keyboard and functions

Remove parts off, part 2

Removing parts, assembly generally takes place in reverse order.

Please be aware that these photos do not replace the installation instructions.
And I do not handle all the installation steps, pictures illustrate only the amount of work.





Remove screws

Lift ICM-panel shield cover out



Remove screws

Pull out and remove electrical connectors

Remove flat cable, first you must pop up small nails to the both sides



Remove screws

Later you will connect a new head unit screen flat cable that connector

Remove parts off, part 1

With the player became a good installation instructions. First, I took the battery shoe of. Then remove parts off, red arrows represent the directions, connectors, parts and screws.

Assembly generally takes place in reverse order.

Please be aware that these photos do not replace the installation instructions.
And I do not handle all the installation steps, pictures illustrate only the amount of work and  helping avoid breaking the parts.

Pull the panel out



Pull the panel out

Remove the airbag connector

Remove the ventilation valve



Remove carpet

Open screws

Open screws

Remove glovebox flap and electrical connectors

Open srew and pull out the pipe

Open srews



Pull out the glovebox



 Pull the panel out to the upper side and lift it up from below



Pull the ICM-unit out by pushing from behind

Remove electrical connectors





Remove the cover plate handbrake around, notices retaining claws



Remove screws

Remove screws



Lift up the clip and push console to the backwards

Remove screws

Remove screws

Remove electrical connector

Now you can lift midlle console off

Remove screws, pull headunit out and remove electrical connectors

Pull the seal out

Pull out the A-pillar panel, notice the black bracket
